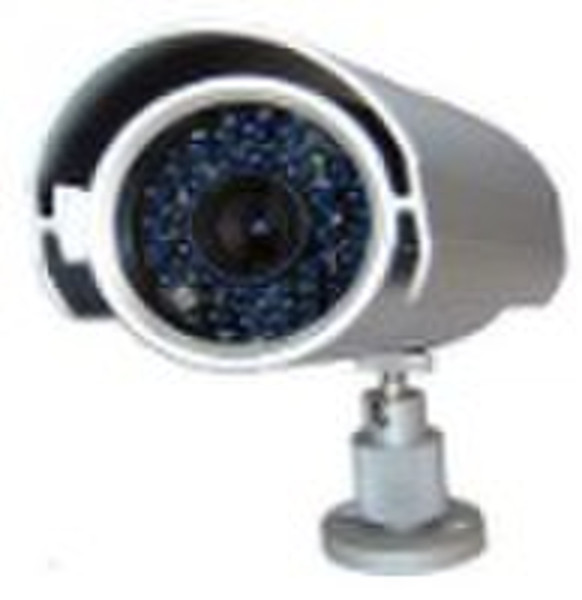

SSV-307SH CCTV camera

Auto Electronic Shutter(AES), Auto Gain Control(AGC), Auto White Balance(AWB), 0.45 Gamma Characteristic Built in 30 Units IR LED, 5 Degrees of Beam Spread Angle With Anti-aliasing and IR-pass (850nm) optical filter Color image automatically changed into B/W Image in lowlight environments IR Effective Range 30Meter IP 66 Waterproof Standard with Tempered Glass . Scanning System 2 : 1 Interlace Resolution Horizontal420 TV Lines Sensitivity 0.1Lux at F2.0 / 0 Lux with IR S/N Ratio Morethan 48 dB (AGC OFF) Electronic Shutter Auto: 1/60 (50) sec. 1/100,000 sec White Balance Auto White Balance ( 2500K 9500K ) Gain Control Automatic Gain Control (AGC) Gamma Characteristic r=0.45 Video Output 1.0 Vp-p Composite Video / 75 Ohms. BNC Connector Lens Built-in 6.0mm/F2.0 Fixed Lens (Optional : 4.0 / 8.0 / 12.0mmBoard Lens) Operating Temperature - 10 + 50 degree / RH 85% or Less Waterproofing Standard IP 66 Waterproof Standard Power Consumption Board Camera : DC 12V / 1.5W & Total : DC 12V / 8.5W Dimesion 80mm(Dia.)x 175mm (L) Weight 400 Grams, Infrared Luminary 30 Units of IR LED ; Life: 1,0000 Hou r Illuminator Active Limit 10 Lux. Power Consumption 12V DC - Max. 7.0 Watt.
